Bent tube for multirotor 25mm reinforced

These custom multirotor tubes have been made to provide you an arm replacement solution for nearly any multirotor. They are section shaped and each part may be used for a particular purpose. The first section is 5 degrees angled to the tube motor section giving a 5 degrees dihedral - this section is intended to be used in simple horizontal clamps. The second section is intended to be used in any foldable mechanism, in such case these mechanisms already have dihedral built in, or with standard clamps with no dihedral.

The shape of the tubes rises the motor lowering the gravity center of the entire multirotor and allows easy mounting of bottom motors in coaxial construction with piece of mind that the bottom motor would hit retractable legs. Both the low gravity center and the dihedral mechanically stabilize multirotor the tubes are on.

Here are the main advantages of the bent tubes:

- low gravity center of a multirotor
- 5 degrees dihedral
- easy coaxial constructions

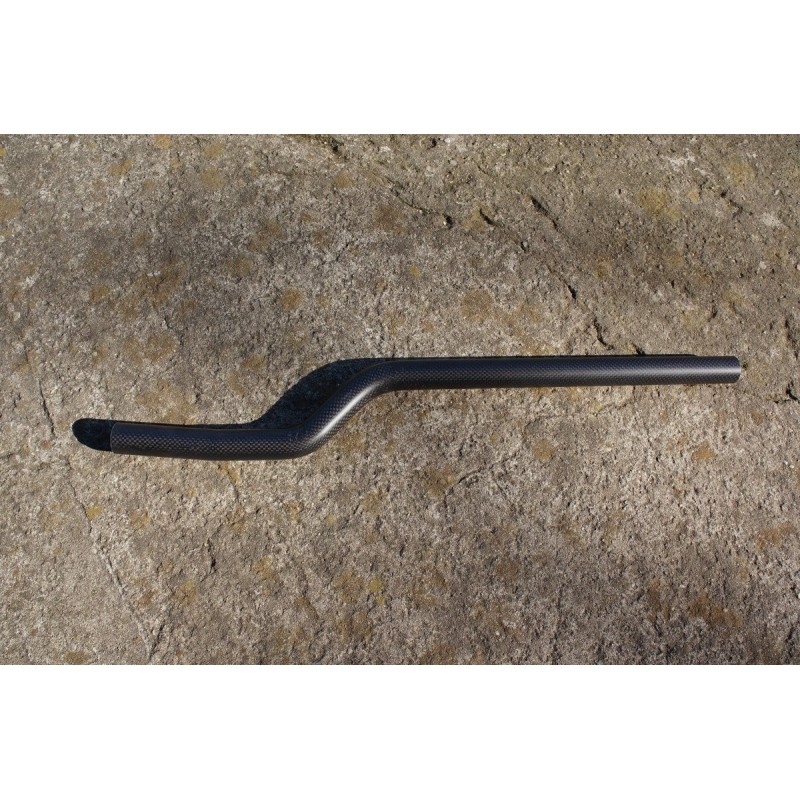

Number 2 on the above photo shows the actual product.

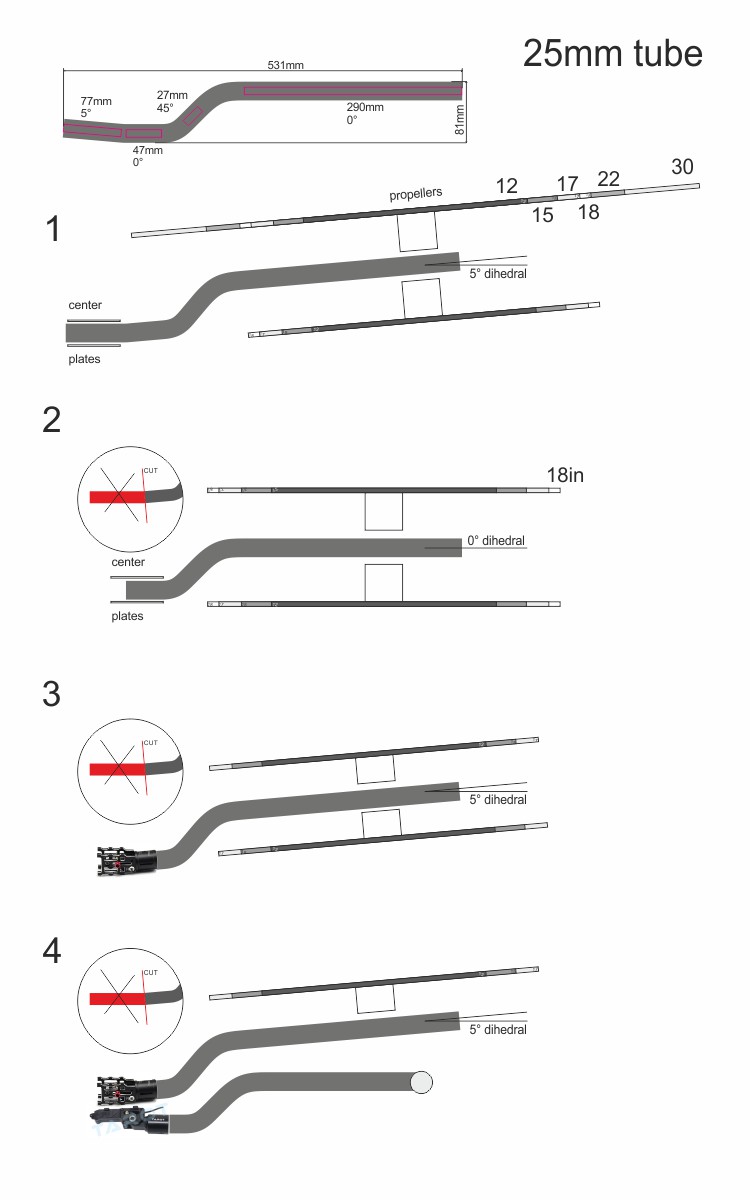

The following drawing shows exactly the shape and the size of the tube.
On drawing 4 the tube is also used for multirotor retractable legs.
